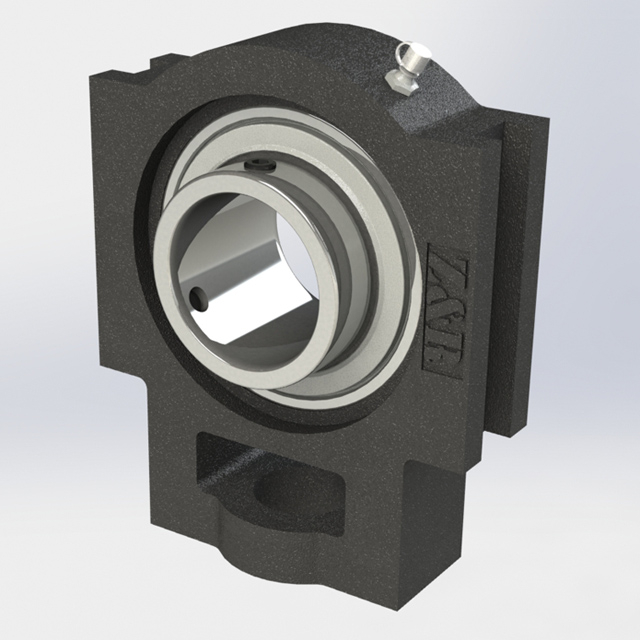

轴径 | 连座轴承 型号 | 外形尺寸(mm) | 轴承承型号 | 座型号 | 重量 (kg) | |||||||||||||||
d | N1 | L2 | H2 | N2 | N | L3 | A1 | H1 | H | L | A | A2 | L1 | B | S | |||||
(min.) | (mm) | |||||||||||||||||||
1/2
5/8
11/16 3/4 | 12
15
17
20 | UCT201 201-8 202 202-10 203 203-11 204-12 204
| 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31 | 12,7 | UC201 201-8 202 202-10 203 203-11 204-12 204 | T204 | 0,82 |
7/8 15/16
1 |
25 | UCT205-14 205-15 205 205-16
| 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 97 | 32 | 24 | 62 | 34 | 14,3 | UC205-14 205-15 205 205-16 | T205 | 0,88 |
1-1/8
1-3/16 1-1/4 |
30 | UCT206-18 206 206-19 206-20
| 16 | 10 | 56 | 37 | 22 | 57 | 12 | 89 | 102 | 113 | 37 | 28 | 70 | 38,1 | 15,9 | UC206-18 206 206-19 206-20 | T206 | 1,3 |
1-1/4 1-5/16 1-3/8
1-7/16 |
35 | UCT207-20 207-21 207-22 207 207-23
| 16 | 13 | 64 | 37 | 22 | 64 | 12 | 89 | 102 | 129 | 37 | 30 | 78 | 42,9 | 17,5 | UC207-20 207-21 207-22 207 207-23 | T207 | 1,7 |
1-1/2 1-9/16 |
40 | UCT208-24 208-25 208
| 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 114 | 144 | 49 | 33 | 88 | 49,2 | 19 | UC208-24 208-25 208 | T208 | 2,5 |
1-5/8 1-11/16 1-3/4 |
45 | UCT209-26 209-27 209-28 209
| 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 117 | 144 | 49 | 35 | 87 | 49,2 | 19 | UC209-26 209-27 209-28 209 | T209 | 2,5 |
1-7/8 1-15/16 |
50 | UCT210-30 210-31 210
| 19 | 16 | 83 | 49 | 29 | 86 | 16 | 102 | 117 | 149 | 49 | 37 | 90 | 51,6 | 19 | UC210-30 210-31 210 | T210 | 2,6 |
2 2-1/8
2-3/16 |
55 | UCT211-32 211-34 211 211-35
| 25 | 19 | 102 | 64 | 35 | 95 | 22 | 130 | 146 | 171 | 64 | 38 | 106 | 55,6 | 22,2 | UC211-32 211-34 211 211-35 | T211 | 4,0 |
2-1/4
2-3/8 2-7/16 |
60 | UCT212-36 212 212-38 212-39
| 32 | 19 | 102 | 64 | 35 | 102 | 22 | 130 | 146 | 194 | 64 | 42 | 119 | 65,1 | 25,4 | UC212-36 212 212-38 212-39 | T212 | 4,9 |
2-1/2 |
65 | UCT213-40 213 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 224 | 70 | 44 | 137 | 65,1 | 25,4 | UC213-40 213 | T213 | 7,0 |
2-3/4 |
70 | UCT214-44 214 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 224 | 70 | 46 | 137 | 74,6 | 30,2 | UC214-44 214 | T214 | 7,1 |
3 | 75 | UCT215 215-48 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 232 | 70 | 48 | 140 | 77,8 | 33,3 | UC215 215-48 | T215 | 7,5 |
80 | UCT216 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 165 | 184 | 235 | 70 | 51 | 140 | 82,6 | 33,3 | UC216 | T216 | 8,2 | |
3-1/4 |
85 | UCT217-52 217 | 38 | 29 | 124 | 73 | 48 | 157 | 30 | 173 | 198 | 260 | 73 | 54 | 162 | 85,7 | 34,1 | UC217-52 217 | T217 | 11,0 |
3-1/2 |
90 | UCT218-56 218 | 40 | 30 | 130 | 80 | 48 | 140 | 30 | 190 | 215 | 275 | 80 | 55 | 170 | 96 | 39,7 | UC218-56 218 | T218 | |
