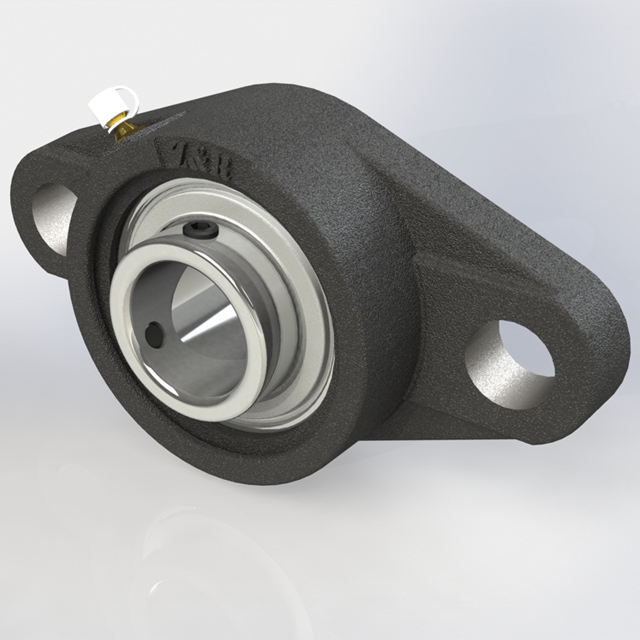

轴径 | 连座轴承 型号 | 外形尺寸(mm) | 螺栓 规格 | 轴承型号 | 座型号 | 重量 (kg) | ||||||||||
d | H | J | L | A2 | A1 | A | E | N | S | A4 | ||||||
(min.) | (mm) | |||||||||||||||
1/2
5/8
11/16 3/4 | 12
15
17
20 | UCFL201 201-8 202 202-10 203 203-11 204-12 204 | 113 | 90 | 60 | 15 | 11 | 25,5 | 33,3 | 11,5 | 12,7 | 37,5 | M10 | UC201 201-8 202 202-10 203 203-11 204-12 204 | FL204 | 0,51 |
7/8 15/16
1 |
25 | UCFL205-14 205-15 205 205-16 | 130 | 99 | 68 | 16 | 13 | 27 | 35,7 | 11,5 | 14,3 | 40 | M10 | UC205-14 205-15 205 205-16 | FL205 | 0,60 |
1-1/8
1-3/16 1-1/4 |
30 | UCFL206-18 206 206-19 206-20 | 148 | 117 | 80 | 18 | 13 | 31 | 40,2 | 11,5 | 15,9 | 44 | M10 | UC206-18 206 206-19 206-20 | FL206 | 0,90 |
1-1/4 1-5/16 1-3/8
1-7/16 |
35 | UCFL207-20 207-21 207-22 207 207-23 | 161 | 130 | 90 | 19 | 14 | 34 | 44,4 | 14 | 17,5 | 48,5 | M12 | UC207-20 207-21 207-22 207 207-23 | FL207 | 1,20 |
1-1/2 1-9/16 |
40 | UCFL208-24 208-25 208 | 175 | 144 | 100 | 21 | 14 | 36 | 51,2 | 14 | 19 | 55 | M12 | UC208-24 208-25 208 | FL208 | 1,50 |
1-5/8 1-11/16 1-3/4 |
45 | UCFL209-26 209-27 209-28 209 | 188 | 148 | 108 | 22 | 16 | 38 | 52,2 | 18 | 19 | 57 | M16 | UC209-26 209-27 209-28 209 | FL209 | 1,90 |
1-7/8 1-15/16 2 |
50 | UCFL210-30 210-31 210 210-32 | 197 | 157 | 115 | 22 | 16 | 40 | 54,6 | 18 | 19 | 60 | M16 | UC210-30 210-31 210 210-32 | FL210 | 2,20 |
2 2-1/8
2-3/16 |
55 | UCFL211-32 211-34 211 211-35 | 224 | 184 | 130 | 25 | 18 | 43 | 58,4 | 18 | 22,2 | 64 | M16 | UC211-32 211-34 211 211-35 | FL211 | 3,10 |
2-1/4
2-3/8 2-7/16 |
60 | UCFL212-36 212 212-38 212-39 | 250 | 202 | 140 | 29 | 18 | 48 | 68,7 | 18 | 25,4 | 74,5 | M16 | UC212-36 212 212-38 212-39 | FL212 | 4,0 |
2-1/2 |
65 | UCFL213-40 213 | 258 | 210 | 155 | 30 | 20 | 50 | 69,7 | 23 | 25,4 | 79 | M20 | UC213-40 213 | FL213 | 5,0 |
2-3/4 |
70 | UCFL2144 214 | 265 | 216 | 160 | 31 | 20 | 54 | 75,4 | 23 | 30,2 | -- | M20 | UC214-44 214 | FL214 | 5,6 |
2-15/16
3 |
75 | UCFL215-47 215 215-48 | 275 | 225 | 164 | 34 | 22 | 55 | 78,5 | 23 | 33,3 | -- | M20 | UC215-47 215 215-48 | FL215 | 6,0 |
80 | UCFL216 | 290 | 233 | 180 | 34 | 22 | 58 | 83,3 | 25 | 33,3 | -- | M22 | UC216 | FL216 | 7,8 | |
3-1/4 |
85 | UCFL217-52 217 | 305 | 248 | 190 | 36 | 22 | 63 | 87,6 | 25 | 34,1 | -- | M22 | UC217-52 217 | FL217 | 9,8 |
3-1/2 |
90 | UCFL218-56 218 | 320 | 265 | 205 | 40 | 23 | 68 | 96,3 | 25 | 39,7 | -- | M22 | UC218-56 218 | FL218 | 12,4 |
